您的位置 : 首页>工业相机>GigE Vision XCG>SONY XCG-5005E&XCG-5005CR
SONY XCG-5005E&XCG-5005CR索尼参数协议

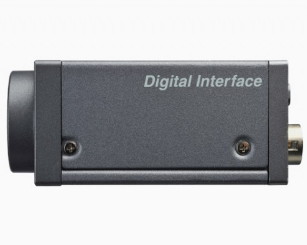

SONY XCG-5005E&XCG-5005CR

2/3型 逐行扫面CCD,500万像素,15fps,最大输出像素:2,448 × 2,048,搭载Gige Vision接口的XCG系列,实现非压缩、高速传送,有长距离传送系统。

在线购买

单击进入在线购买

分享至:

The XCG Series from Sony incorporates the GigE Vision interface, which is specifically standardised for machine vision applications based on Gigabit Ethernet technology.

In accordance with the growing demand for large-scale systems, this interface enables the cameras to transfer a large amount of data over long distances. The use of an Ethernet cable and availability of a wide variety of peripheral devices contribute to significant cost-cutting benefits when designing a complete vision system. Moreover, by incorporating a packet re-send mechanism, the XCG Series can securely transmit data to the host computer.

The newly expanded XCG Series now consists of five models – the XCG-5005E, the XCG-U100E, the XCG-SX99E, the XCG-SX97E, and the XCG-V60E. Each camera varies in resolution and frame rate, and offers unique benefits that users have come to expect from Sony’s camera products. These cameras retain some of the same functionality found in Sony’s renowned XCD Series such as bulk trigger mode, sequential trigger mode, and a partial scanning function. In addition, the XCG-SX99E, XCG-SX97E, and XCG-5005E feature critical camera functions for security applications such as IR wavelength coverage (XCG-SX99E and XCG-SX97E) and ultra-high 5-megapixel resolution (XCG-5005E).

The XCG camera series offers choice, flexibility, and high image quality options to match your specific inspection application requirements. By utilizing the features and benefits of the GigE Vision interface, the XCG Series expands the possibilities for factory automation and security applications, while also delivering the potential of significant cost savings.


Full lineup: XCG-5005E, XCG-U100E,XCG-SX99E, XCG-SX97E, XCG-V60E
With a variety of resolutions and feature-rich benefits, it’s never been easier to select the right camera for your specific factory automation, machine vision, and high-end security applications.

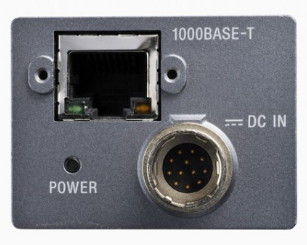

GigE Vision Interface
The adoption of the GigE Vision interface adds to the outstanding value and performance of the XCG camera series. Answering the growing demand for large-scale systems, the XCG Series can transfer large data over long distances (up to 100m). In addition, the cameras are reinforced with a packet re-send mechanism that can eliminate the loss of transferred data. Furthermore, the overall cost of a vision system can be reduced with these cameras thanks to the availability of a variety of peripheral devices.

Driver for the XCG Series
The XCG Series is equipped with a Sony-provided, dedicated driver. This image filter driver enables jumbo-packet data transfer across all industry-standard hardware. It is also capable of non-GigE Vision data transfer in GigE Vision environments.

Bulk Trigger Mode/Sequential Trigger Mode
The XCG Series features an advanced Bulk Trigger Mode and Sequential Trigger Mode, in addition to its conventional trigger mode. Bulk Trigger Mode allows the XCG Series to capture up to 16 images in rapid succession using a single software or hardware trigger. Sequential Trigger Mode periodically sends a software or hardware trigger to the camera to capture the successive images. With the cameras’ memory channel, up to 16 different settings can be called up to capture these images. Thanks to these beneficial trigger options, the XCG Series reduces the need to receive signals from the host PC.

High Resistance to Shock and Vibration
Thanks to their robustness and vibration resistance, the XCG Series cameras deliver outstanding performance in the most challenging environmental conditions.

Other features
• Vertical and Horizontal Partial Scanning
• Vertical Binning
